YZ-20T4 Ophthalmic Surgery Microscope
.png)
Description
YZ-20T4 Ophthalmic Surgery Microscope: Elevating Surgical Precision
Harnessing Surgical Excellence
Discover the pinnacle of surgical precision with the YZ-20T4 Ophthalmic Surgery Microscope, a masterpiece designed to revolutionize the landscape of ophthalmic, orthopedic, and hand surgeries. Dive into its exceptional features that redefine surgical outcomes.
Key Features:

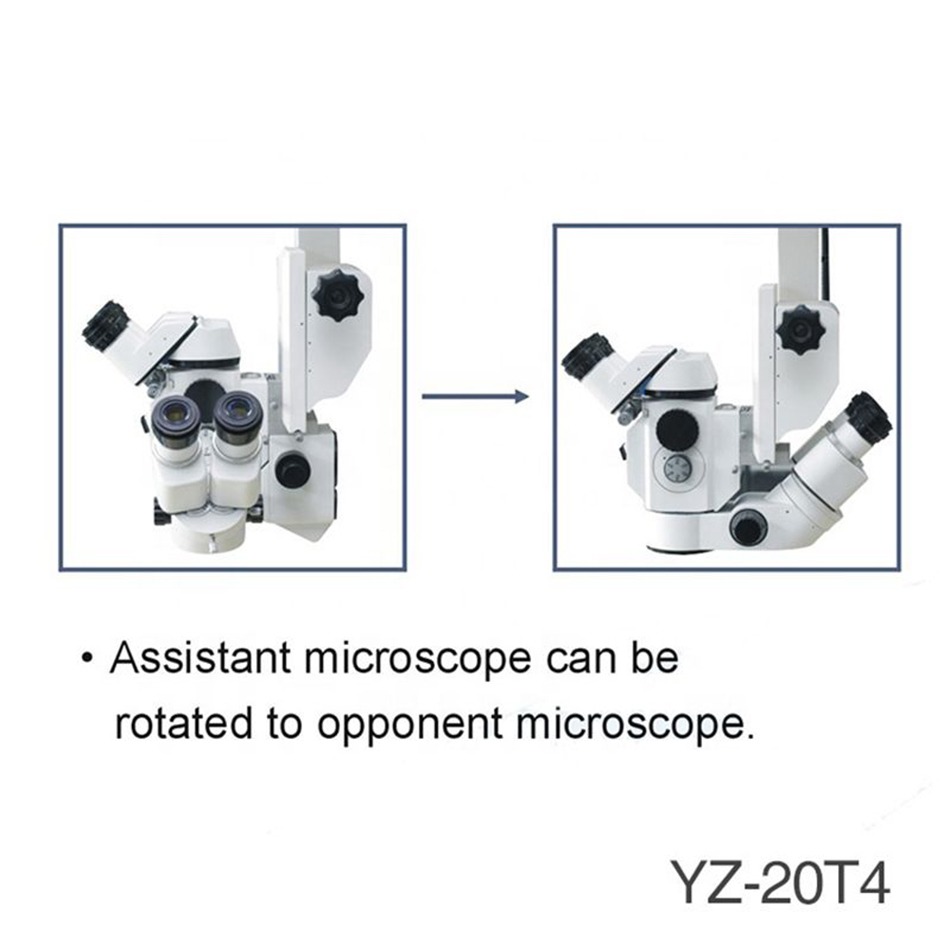

- 360-Degree Assistant Microscope: Seamlessly collaborate with a rotating assistant microscope that complements the main microscope, enhancing teamwork and precision.

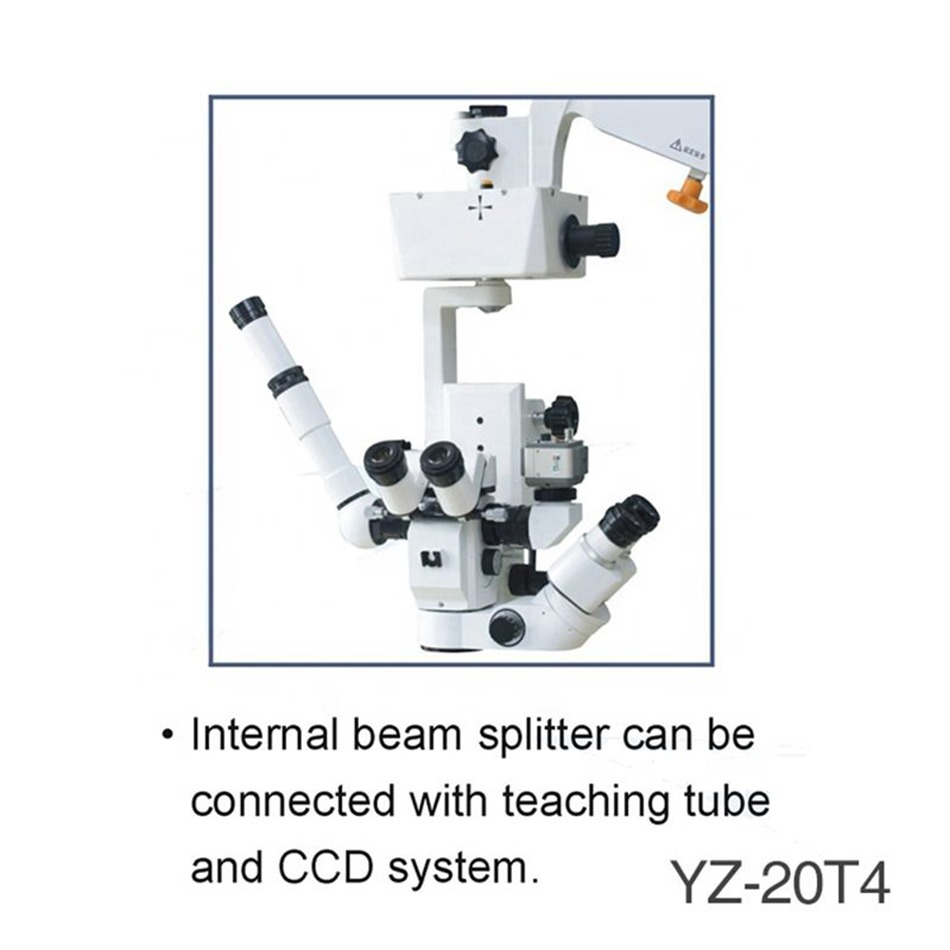

- Advanced Teaching and Imaging: The internal beam splitter facilitates connections with teaching tubes and CCD systems, enriching the surgical experience with enhanced visualization and teaching capabilities.

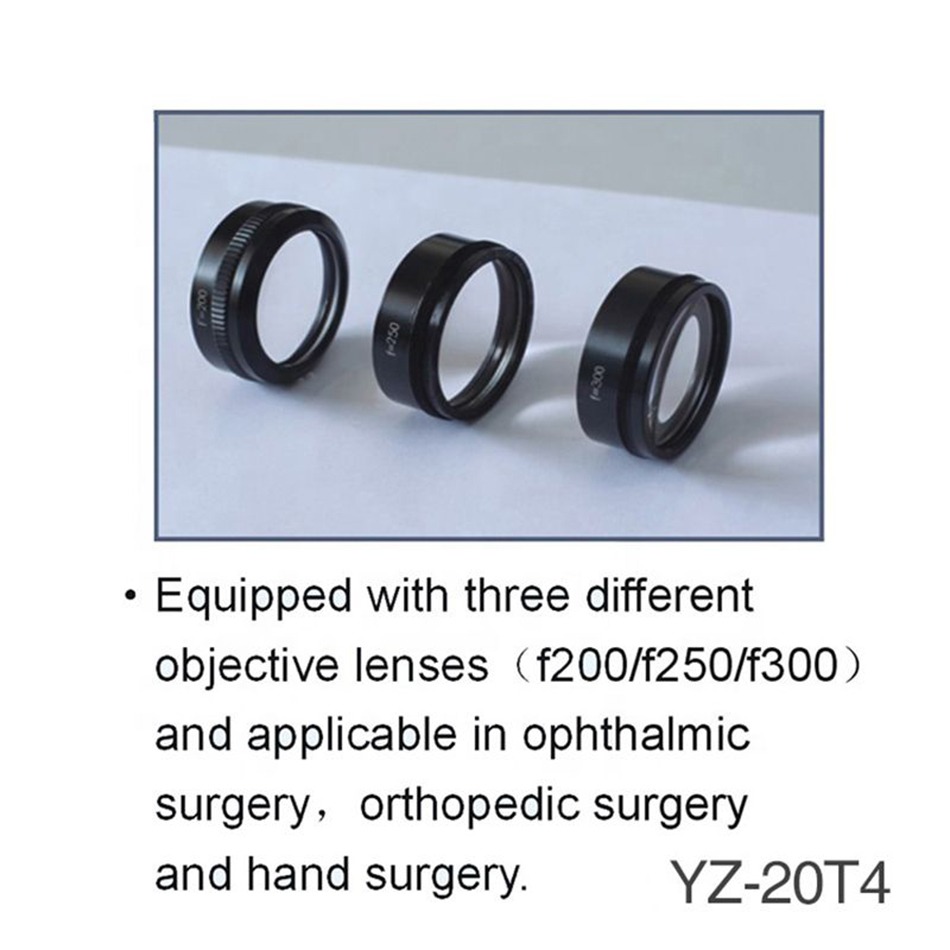

- Versatile Objective Lenses: With three different objective lenses (f200/f250/f300), this microscope adapts to various surgical domains, ensuring unmatched versatility and performance.

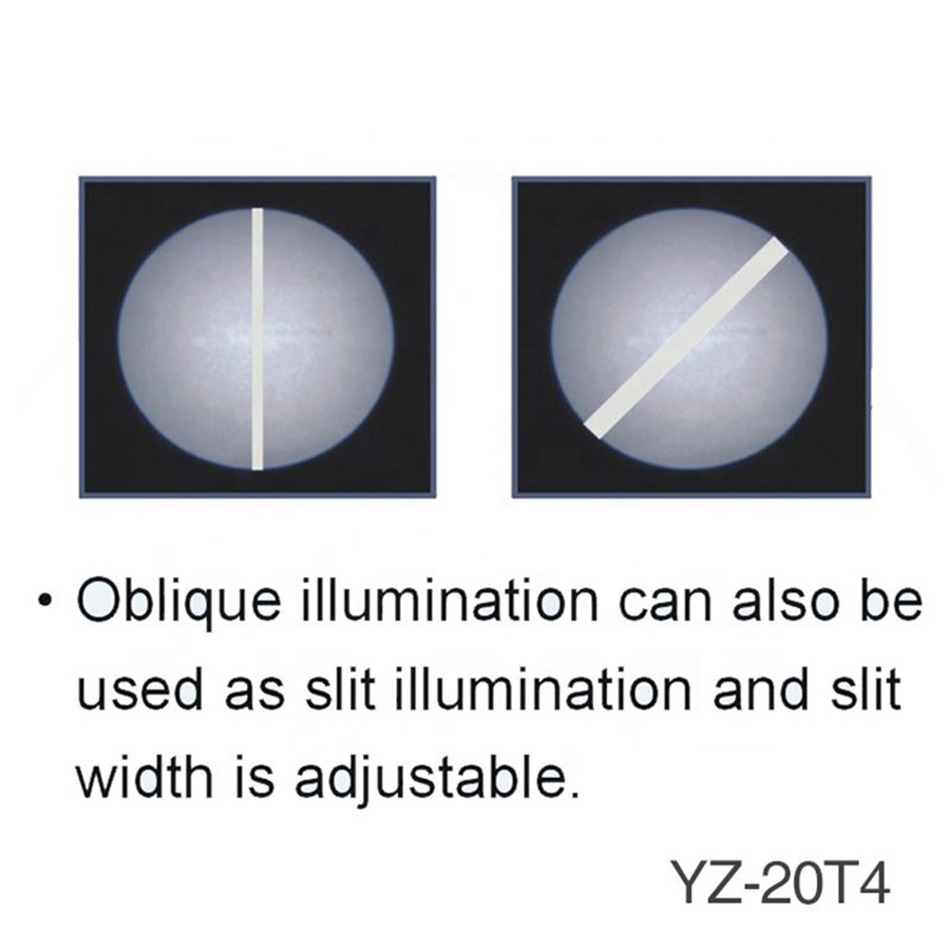

- Precision in Illumination: The oblique illumination, doubling as slit illumination, offers adjustable slit width, allowing for precise and detailed visualization during procedures.
Step into a new era of surgical precision with the YZ-20T4 Ophthalmic Surgery Microscope. Transform your surgical endeavors with collaboration, adaptability, and exceptional performance.
Product Dimensions
Width
cm
Height
cm
length
cm
Weight
g
Product Specifications
Specification
Model
YZ-20T4 Ophthalmic Operation Microscope
Eye piece Magnification
12.5x/18B
Working Distance
f200: 190mm; f250: 240mm; f300:290mm
Magnification for Main Microscope
f200: 4x, 6x, 10x,16x, 25x; f250: 3.2x, 5x, 8x, 12.8x, 20x; f300: 2.7x, 4.2x, 6.7x,11x, 17x
Magnification for Assistant Microscope
f200: 6x, 10x,16x; f250: 5x, 8x, 12.8x; f300: 4.2x, 6.7x,11x
Adjustable Diopter
±7D
Adjustable Range of Pupil Distance
50mm ~ 75mm
Focus for Assistant Microscope
≥ 30mm
Maximal Resolution
112LP/m
Illumination Source
12V/100W, Medical cold-reflection Halogen Lamp
Illumination Type
6°+0 °Coaxial illumination and, 25° Oblique Illumination (it can be used as slit illumination) Slit Width is adjustable and the
angle is 360°rotation.
Coaxial Illumination
≥ 50000lx
Oblique Illumination
≥ 45000 lx
Reaching Radius of Arm
1040mm
Adjustable Vertical Range
850mm ~ 1350mm
Fine Focus Speed and Range
≤ 2mm/s, 50mm
Speed for X/Y and Range
≤ 2mm/s, 50mmx50mm
Input Voltage
AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz
Power
330VA
Fuse
AC 250V T4.0A(51S-040H), AC 110V T 8.0 A (51S-080L)
Electrical Safety Standard
Executive to GB 9706.1-2007, Class I
Packing Volume
0.727cbm, 5 cartons
Total Gross Weight
210kg
